Theben TheLuxa E180 BK liiketunnistin musta

Theben theLuxa E180 BK liiketunnistin musta

Theben theLuxa E180 BK liiketunnistin musta
Theben theLuxa E180 BK liiketunnistin musta
Theben theLuxa E180 BK liiketunnistin musta

Price
Ask for the price


Quantity
pc




Store41 pcs immediately
Available in the webstore41 pcs immediately

Product code
1010206
Bar code
4003468100721

Log in and order
Availability
Immediately

Detailed availability


Product description

- Motion detector (PIR)
- Automatic lighting control based on presence and brightness
- 180° detection angle
- For outdoor use
- Sensor head can be turned by ± 90° horizontally and by 30° downwards/upwards
- Adjustable brightness switching value and switch-off delay
- Mixed light measurement suitable for the control of fluorescent, incandescent, halogen lamps and LEDs
- Area limit via stickers
- Test function for checking detection area
- Single-handed plug-in installation

Operating voltage: 230 V AC
Frequency: 50 Hz
Stand-by consumption: <1 W
Light measurement: Mixed light measurement
Number of channels: 1
Installation type: Wall installation
Setting range brightness: 5 – 1000 lx
Switching capacity light: 10 A (at 230 V AC, cos φ = 1), ,

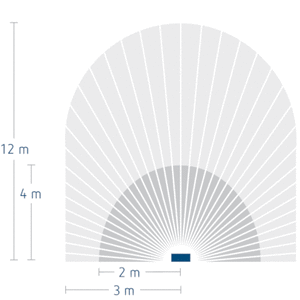

Detection angle: 180°
Light switch-off delay: 5 s-15 min
Incandescent lamp load: 2300 W
Fluorescent lamp load (conventional) parallel-corrected: 350 VA 37 µF
Fluorescent lamp load (conventional) series-corrected: 400 VA
LED lamp < 2 W: 50 W
LED lamp 2-8 W: 150 W
LED lamp > 8 W: 150 W
Lamps: Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
Ambient temperature: -20 °C … +40 °C
Protection class: II
Type of protection: IP 55

The approximate size of the packed product or the sales package is 100 x 80 x 150 mm.


Asennustapa
Unisex


Tunnistuskulma
180°
